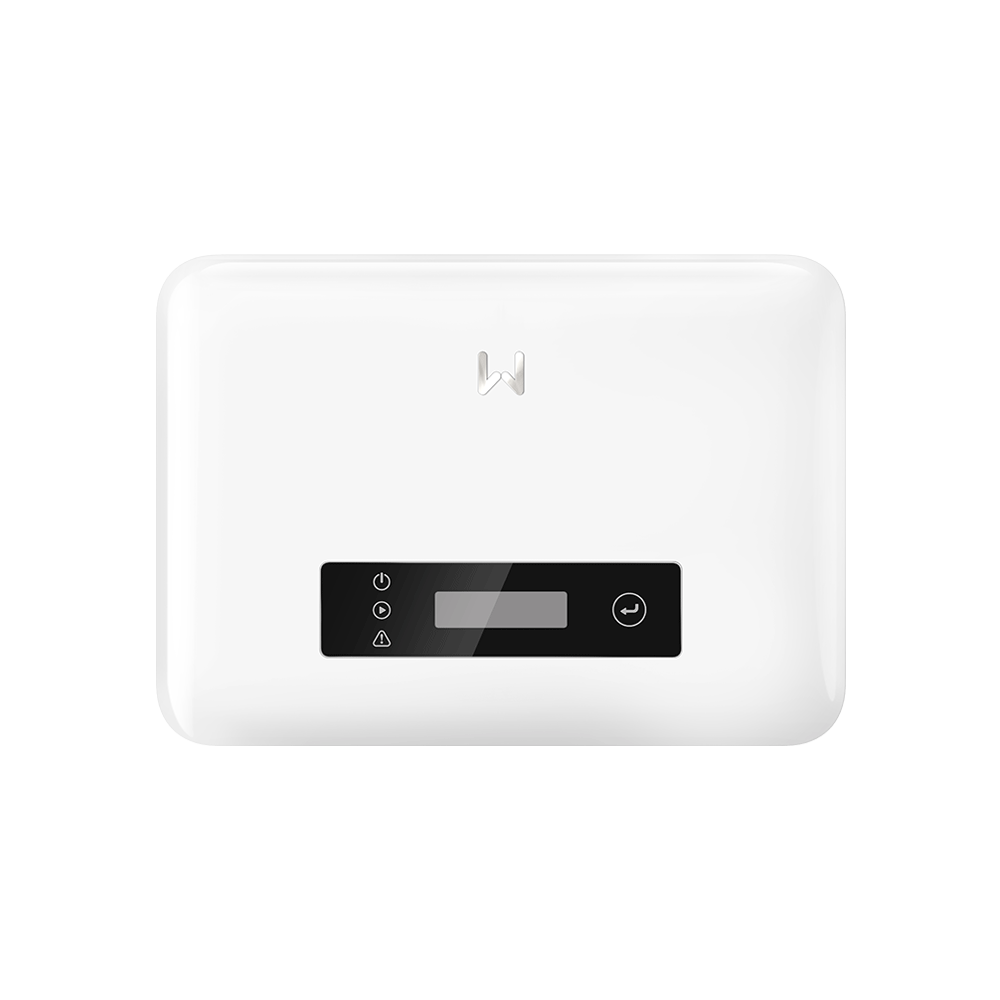

GoodWe GW1000-XS-30 – 1 kW Single-Phase Solar Inverter

The GoodWe GW1000-XS-30 is a compact and efficient 1 kW single-phase string inverter from the latest XS G3 Series, designed for residential photovoltaic systems. Combining a lightweight, space-saving design with silent operation and smart connectivity, it is an excellent solution for small residential solar installations.

Designed to maximise energy yield, the GW1000-XS-30 features a low 50 V start-up voltage, a wide 40–450 V MPPT operating range, and supports up to 16 A input current, making it compatible with modern high-power PV modules. One MPPT tracker provides efficient energy harvesting from the connected PV string.

With 1,000 W nominal AC output power and a maximum efficiency of 97.1%, the inverter provides reliable and efficient conversion of solar energy for everyday household use.

Key Features

• 1,000 W single-phase output

• 1 MPPT with 16 A max. input current

• Low 50 V start-up voltage

• Up to 97.1% efficiency

• Ultra-quiet operation: <20 dB

• Compact and lightweight – only 4.6 kg

• IP66 protection

• Smart monitoring via WLAN & App

• RS485, WiFi, LAN, 4G or Bluetooth connectivity

With its combination of compact dimensions, silent operation, smart monitoring capabilities and high efficiency, the GoodWe GW1000-XS-30 is a practical inverter for modern residential PV systems where reliability and ease of installation are essential.

More information about GoodWe GW1000-XS-30:

• Datasheet
