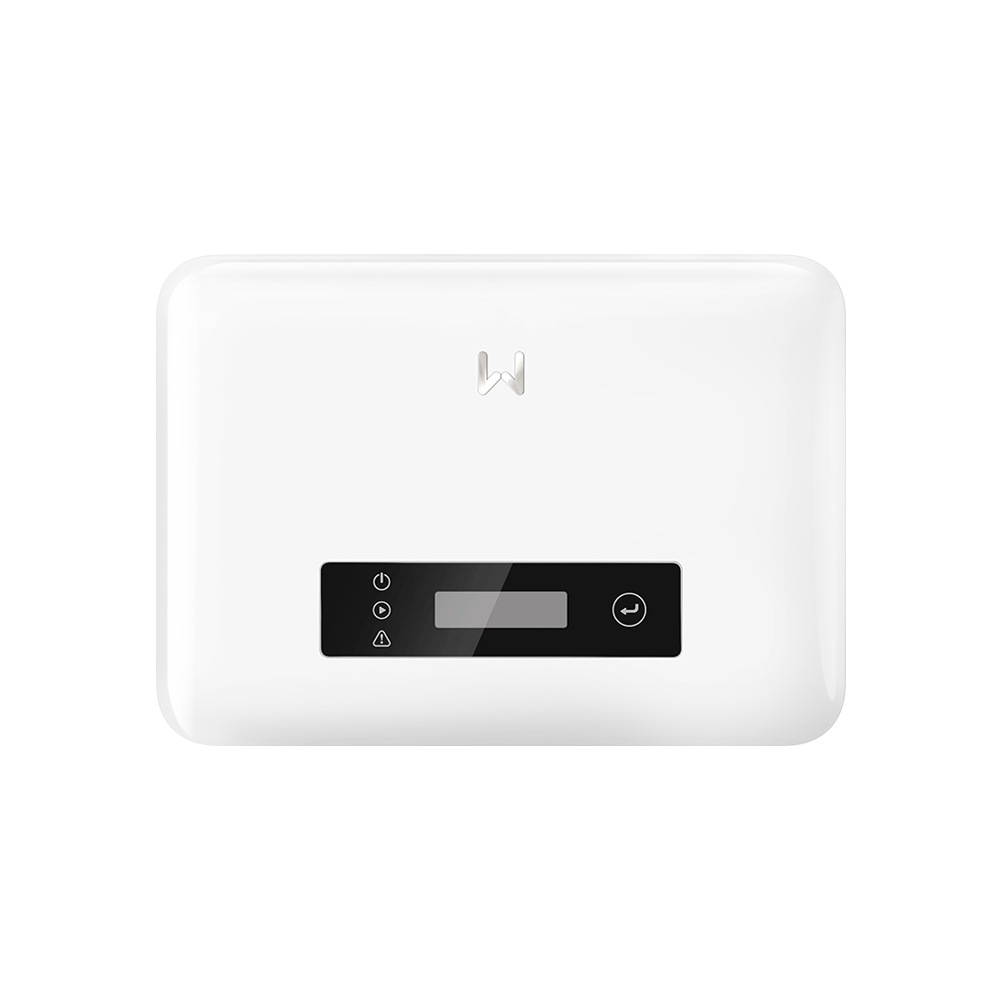

GoodWe GW2500-XS-30 – 2.5 kW Single-Phase Solar Inverter

The GoodWe GW2500-XS-30 is a compact and efficient 2.5 kW single-phase string inverter from the XS G3 Series, designed for residential photovoltaic systems. Its lightweight design, silent operation and smart connectivity make it an excellent choice for modern residential solar installations.

Designed to maximise energy yield, the GW2500-XS-30 features a low 50 V start-up voltage, a wide 40–550 V MPPT operating range, and supports up to 16 A input current per MPPT, making it compatible with modern high-power PV modules. The inverter is equipped with 1 MPPT and 1 string input.

With 2,500 W nominal AC output power and a maximum efficiency of 97.6%, the GW2500-XS-30 delivers efficient and reliable solar energy conversion for residential PV applications.

Key Features

• 2,500 W single-phase output

• 1 MPPT with 16 A max. input current

• Low 50 V start-up voltage

• Up to 97.6% efficiency

• Ultra-quiet operation: <20 dB

• Compact and lightweight – only 4.6 kg

• IP66 protection

• Smart monitoring via WLAN & App

• RS485, WiFi, LAN, 4G or Bluetooth connectivity

With its combination of compact dimensions, silent operation, high efficiency and smart monitoring capabilities, the GoodWe GW2500-XS-30 is a reliable solution for modern residential solar installations.

More information about GoodWe GW2500-XS-30:

• Datasheet
