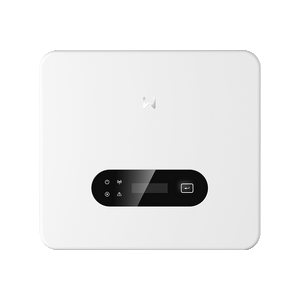

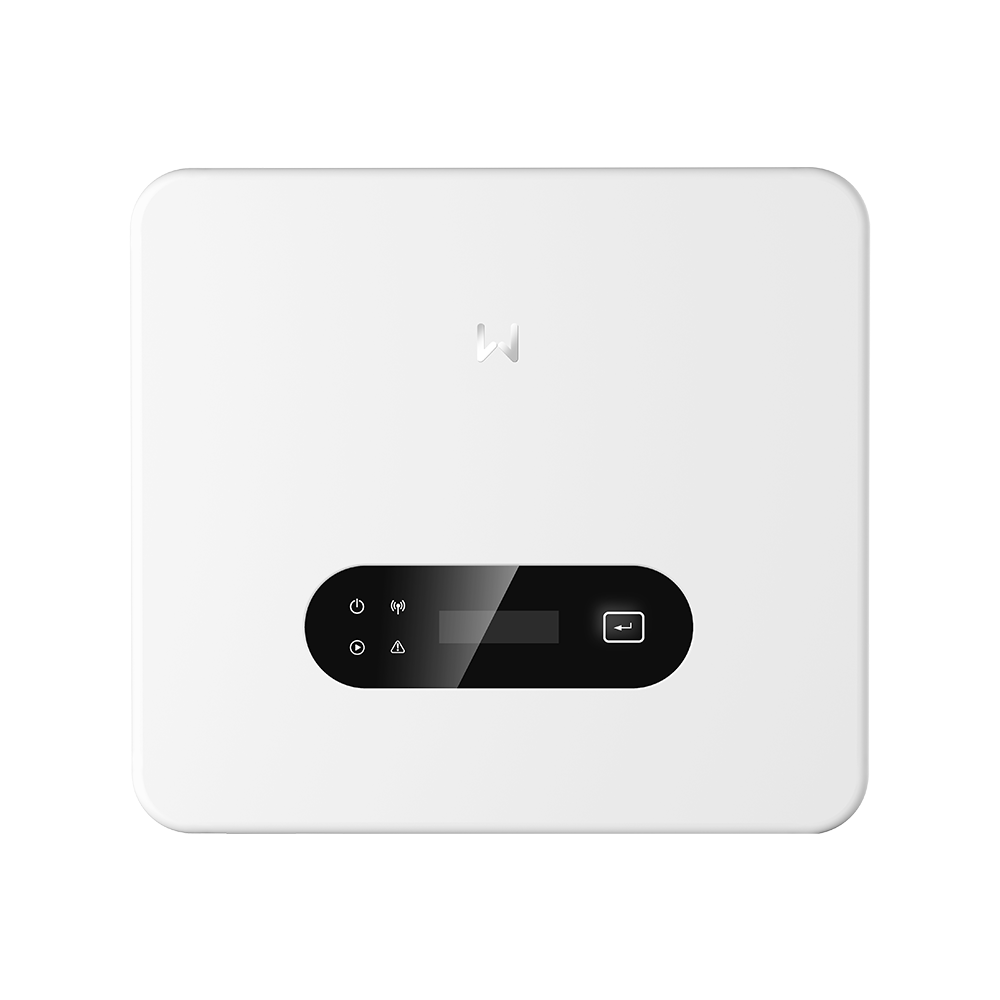

GoodWe GW3.6K-DNS-G40 – 3.6 kW Single-Phase Solar Inverter

The GoodWe GW3.6K-DNS-G40 is a powerful and compact 3.6 kW single-phase string inverter from the fourth-generation DNS G4 Series, designed for residential solar installations. Featuring dual MPPT technology, high-current PV module compatibility and smart connectivity, it provides a flexible and efficient solution for modern home PV systems.

Designed to maximise energy yield, the GW3.6K-DNS-G40 supports up to 200% PV oversizing and offers a maximum input current of 20 A per MPPT. It features 2 independent MPPT trackers, a low 50 V start-up voltage, and a wide 40–560 V MPPT operating range, providing excellent flexibility when designing PV arrays.

With 3,600 W nominal AC output power and a maximum efficiency of 98.1%, the inverter delivers highly efficient solar energy conversion. Its natural convection cooling ensures quiet operation without the need for a fan.

Key Features

• 3,600 W single-phase output

• 2 MPPTs with 20 A max. input current per MPPT

• Up to 200% PV oversizing

• Low 50 V start-up voltage

• Up to 98.1% efficiency

• Quiet natural convection cooling

• IP66 protection

• WiFi & App smart monitoring

• RS485, WiFi, LAN, Bluetooth & 4G connectivity

The GW3.6K-DNS-G40 incorporates comprehensive safety features, including PV insulation resistance detection, residual current monitoring, reverse polarity and anti-islanding protection, as well as AC overcurrent, short-circuit and overvoltage protection. Type II surge protection is included on both the DC and AC sides, while AFCI is available as an option.

With its combination of dual MPPT technology, high efficiency, flexible PV sizing and smart connectivity, the GoodWe GW3.6K-DNS-G40 is a reliable choice for modern residential solar installations.

More information about GoodWe GW3.6K-DNS-G40:

• Datasheet
