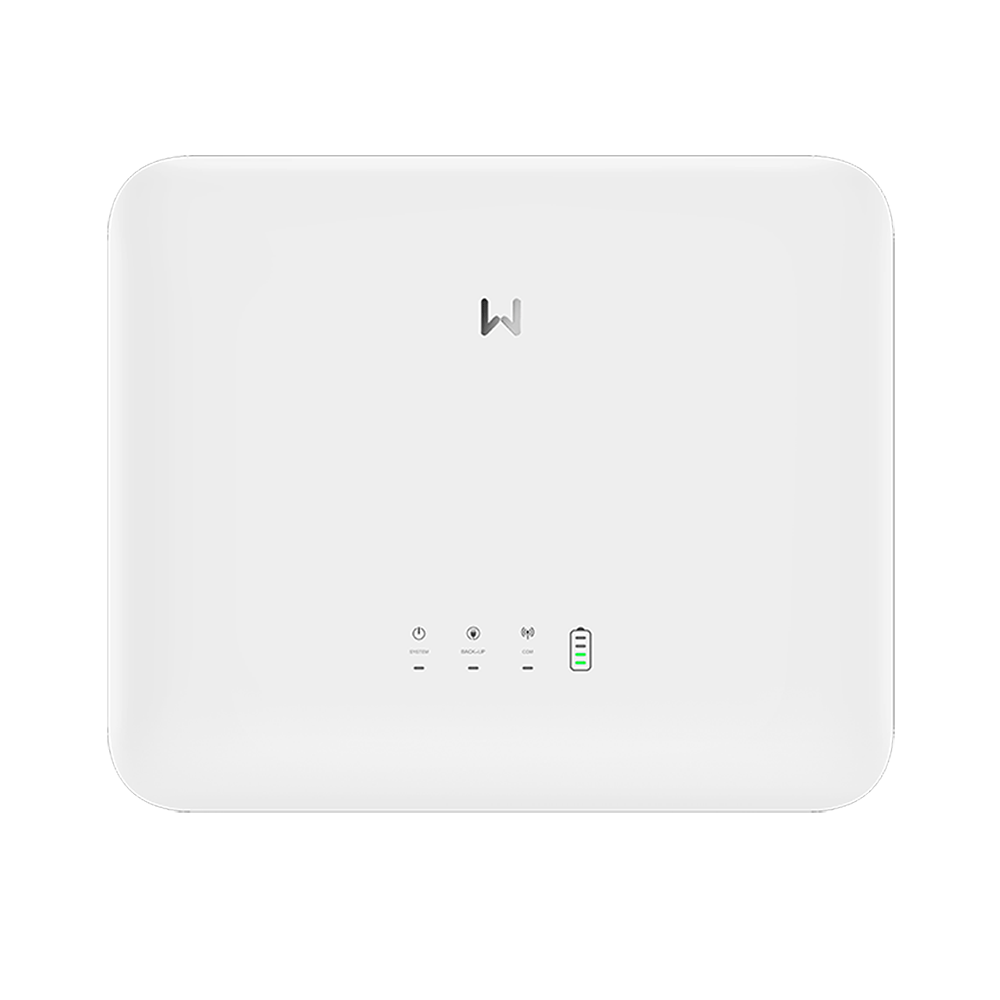

GoodWe GW3000-ES20 – 3 kW Single-Phase Hybrid Solar Inverter
The GoodWe GW3000-ES20 is a compact and efficient single-phase hybrid inverter from the ES G2 Series, designed for residential solar PV and energy storage systems. It combines solar power generation, battery storage and backup functionality in one smart solution, helping households increase energy independence and make better use of generated solar energy.
The ES G2 platform features 2 independent MPPT trackers, a wide 60–550 V MPPT operating range, low 58 V start-up voltage, and supports up to 16 A input current per MPPT. This provides flexibility when designing residential PV arrays and compatibility with modern solar modules.
The ES G2 platform features 2 independent MPPT trackers, a wide 60–550 V MPPT operating range, low 58 V start-up voltage, and supports up to 16 A input current per MPPT. This provides flexibility when designing residential PV arrays and compatibility with modern solar modules.
Key Features
- Single-phase hybrid inverter
- 2 independent MPPTs
- 48 V low-voltage battery system
- Fast UPS switching: <10 ms
- Up to 97.6% maximum efficiency
- 99.9% MPPT efficiency
- Smart home integration
- IP65 protection
- WiFi / LAN / 4G monitoring options
The ES G2 Series includes comprehensive safety features such as PV insulation resistance detection, residual current monitoring, reverse polarity protection, anti-islanding protection, AC overcurrent, short-circuit and overvoltage protection. It also features an integrated DC switch, Type II DC surge protection and remote shutdown, with AFCI available as an option.
With its combination of solar generation, battery storage, backup power and smart energy management, the GoodWe ES G2 platform provides a versatile solution for residential PV systems where energy independence and reliable backup are key priorities.
More information about GoodWe GW3000-ES20:
GoodWe GW3000-ES20 – 3 kW Single-Phase Hybrid Solar Inverter
The GoodWe GW3000-ES20 is a compact and efficient single-phase hybrid inverter from the ES G2 Series, designed for residential solar PV and energy storage systems. It combines solar power generation, battery storage and backup functionality in one smart solution, helping households increase energy independence and make better use of generated solar energy.
The ES G2 platform features 2 independent MPPT trackers, a wide 60–550 V MPPT operating range, low 58 V start-up voltage, and supports up to 16 A input current per MPPT. This provides flexibility when designing residential PV arrays and compatibility with modern solar modules.
The ES G2 platform features 2 independent MPPT trackers, a wide 60–550 V MPPT operating range, low 58 V start-up voltage, and supports up to 16 A input current per MPPT. This provides flexibility when designing residential PV arrays and compatibility with modern solar modules.
Key Features
- Single-phase hybrid inverter
- 2 independent MPPTs
- 48 V low-voltage battery system
- Fast UPS switching: <10 ms
- Up to 97.6% maximum efficiency
- 99.9% MPPT efficiency
- Smart home integration
- IP65 protection
- WiFi / LAN / 4G monitoring options
The ES G2 Series includes comprehensive safety features such as PV insulation resistance detection, residual current monitoring, reverse polarity protection, anti-islanding protection, AC overcurrent, short-circuit and overvoltage protection. It also features an integrated DC switch, Type II DC surge protection and remote shutdown, with AFCI available as an option.
With its combination of solar generation, battery storage, backup power and smart energy management, the GoodWe ES G2 platform provides a versatile solution for residential PV systems where energy independence and reliable backup are key priorities.
More information about GoodWe GW3000-ES20:
GoodWe GW3000-ES20
- Regular price
- €735,00
- Sale price
- €735,00
- Regular price
-
SKU: GW3000-ES20
