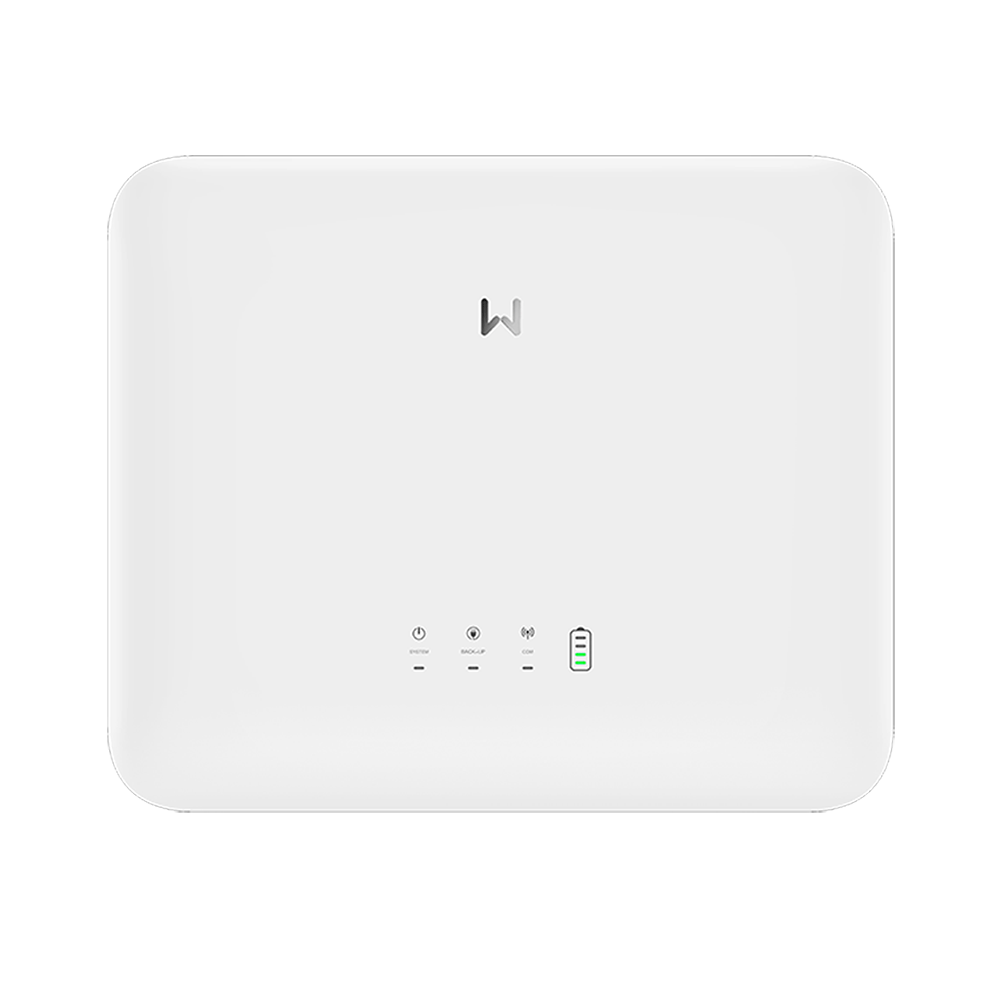

GoodWe GW6000-ES-20 – 6 kW Single-Phase Hybrid Solar Inverter
The GoodWe GW6000-ES-20 is a powerful 6 kW single-phase hybrid inverter from the ES G2 Series, designed for residential solar PV and energy storage systems. Combining solar generation, battery storage and backup functionality, it helps maximise the use of generated solar energy and increase household energy independence.
The GW6000-ES-20 features 2 independent MPPT trackers and supports up to 9,000 W of PV input power. With a wide 60–550 V MPPT operating range, low 58 V start-up voltage, and up to 16 A input current per MPPT, it offers flexible system design and compatibility with modern PV modules.
Designed for 48 V low-voltage battery systems, the GW6000-ES-20 supports a 40–60 V battery voltage range and up to 120 A continuous charging and discharging current. It provides up to 6,000 W charging power and 6,300 W discharge power.
For backup applications, the inverter provides 6,000 VA nominal backup power and can deliver up to 10,000 VA for 10 seconds. With UPS-level switching in less than 10 ms, the system is designed to maintain supported backup loads during grid interruptions.
Key Features
- 6 kW single-phase hybrid inverter
- 2 independent MPPTs
- Up to 9 kW PV input
- 48 V low-voltage battery system
- Up to 120 A charging / discharging current
- Fast UPS switching: <10 ms
- Up to 97.6% maximum efficiency
- IP65 protection
- WiFi / LAN / 4G monitoring options
The GW6000-ES-20 incorporates comprehensive safety features, including PV insulation resistance detection, residual current monitoring, reverse polarity protection, anti-islanding protection, AC overcurrent, short-circuit and overvoltage protection. It also includes an integrated DC switch, Type II DC surge protection and remote shutdown, while AFCI is available as an option.
With its combination of high PV input capacity, battery storage, powerful backup output and smart energy management, the GoodWe GW6000-ES-20 is a versatile solution for residential solar installations where energy independence and reliable backup power are key priorities.
More information about GoodWe GW6000-ES20:
GoodWe GW6000-ES-20 – 6 kW Single-Phase Hybrid Solar Inverter
The GoodWe GW6000-ES-20 is a powerful 6 kW single-phase hybrid inverter from the ES G2 Series, designed for residential solar PV and energy storage systems. Combining solar generation, battery storage and backup functionality, it helps maximise the use of generated solar energy and increase household energy independence.
The GW6000-ES-20 features 2 independent MPPT trackers and supports up to 9,000 W of PV input power. With a wide 60–550 V MPPT operating range, low 58 V start-up voltage, and up to 16 A input current per MPPT, it offers flexible system design and compatibility with modern PV modules.
Designed for 48 V low-voltage battery systems, the GW6000-ES-20 supports a 40–60 V battery voltage range and up to 120 A continuous charging and discharging current. It provides up to 6,000 W charging power and 6,300 W discharge power.
For backup applications, the inverter provides 6,000 VA nominal backup power and can deliver up to 10,000 VA for 10 seconds. With UPS-level switching in less than 10 ms, the system is designed to maintain supported backup loads during grid interruptions.
Key Features
- 6 kW single-phase hybrid inverter
- 2 independent MPPTs
- Up to 9 kW PV input
- 48 V low-voltage battery system
- Up to 120 A charging / discharging current
- Fast UPS switching: <10 ms
- Up to 97.6% maximum efficiency
- IP65 protection
- WiFi / LAN / 4G monitoring options
The GW6000-ES-20 incorporates comprehensive safety features, including PV insulation resistance detection, residual current monitoring, reverse polarity protection, anti-islanding protection, AC overcurrent, short-circuit and overvoltage protection. It also includes an integrated DC switch, Type II DC surge protection and remote shutdown, while AFCI is available as an option.
With its combination of high PV input capacity, battery storage, powerful backup output and smart energy management, the GoodWe GW6000-ES-20 is a versatile solution for residential solar installations where energy independence and reliable backup power are key priorities.
More information about GoodWe GW6000-ES20:
GoodWe GW6000-ES20
- Regular price
- €806,00
- Sale price
- €806,00
- Regular price
-
SKU: GW6000-ES20
