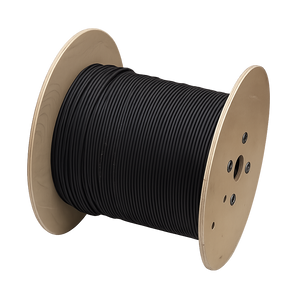

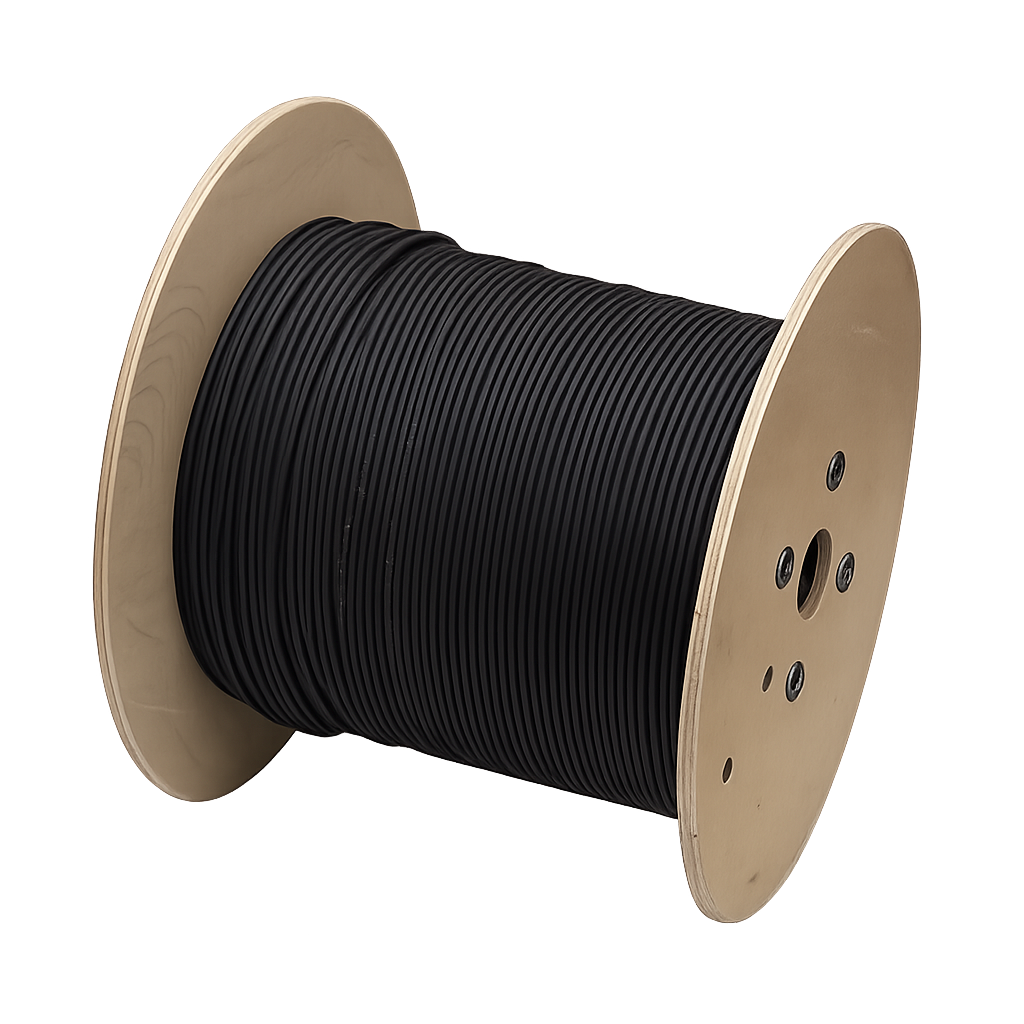

KBE Solar DB+ EN 50618 Solar Cable 10 mm² 500 m Black.

The KBE Solar DB+ EN 50618 10 mm² Solar Cable is a premium photovoltaic cable manufactured in Germany for reliable DC wiring in residential, commercial, and utility-scale solar installations. Supplied in a convenient 500 m spool, this black 10 mm² cable is triple certified to EN 50618 (H1Z2Z2-K), IEC 62930, and 2 PfG 1169/10.19, ensuring compliance with the latest international standards for PV systems. It is rated for 1500 V DC with a maximum operating voltage of 1800 V DC.

Built with a flexible tinned copper Class 5 conductor and durable crosslinked polyolefin insulation and sheath, KBE DB+ offers excellent UV resistance, enhanced water resistance, direct burial capability, and high mechanical durability. The cable is halogen-free, low smoke, compatible with all common photovoltaic connectors, and designed for an expected service life of 25 years according to EN 50618.

Key Features

• Original KBE Solar DB+ photovoltaic cable
• 10 mm² conductor cross-section
• 500 m spool
• Black outer sheath
• Triple certified: EN 50618 (H1Z2Z2-K), IEC 62930, 2 PfG 1169/10.19
• Rated voltage 1500 V DC, maximum operating voltage 1800 V DC
• Tinned copper Class 5 flexible conductor
• Crosslinked polyolefin insulation and sheath
• Direct burial suitable
• Enhanced UV and water resistance
• Halogen-free, low smoke construction
• CPR Dca fire classification
• Compatible with all common PV connectors
• Expected service life of 25 years
• Made in Germany

The KBE Solar DB+ 10 mm² 500 m Black cable delivers durable, certified, and long-lasting performance for professional photovoltaic installations.

More information about KBE DB+ EN 50618 Solar Cable 10 mm² 500 m Black:

• Datasheet
