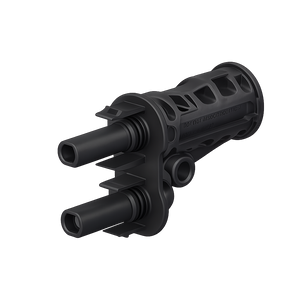

Stäubli MC4-Evo2 Branch Socket PV-AZB4-EVO 2-UR connector.

The Stäubli MC4-Evo2 Branch Socket PV-AZB4-EVO 2-UR is an original Y-branch connector designed to safely combine two photovoltaic strings into a single output. Its compact plug-and-play design eliminates the need for crimping or torqueing during installation, providing a fast, reliable, and professional solution for PV system wiring. The connector is fully compatible with the original MC4 and MC4-Evo2 cable connector families.

Designed for demanding outdoor environments, the branch socket is rated for 1500 V DC according to both IEC 62852 and UL 6703 standards. It features Stäubli's proven MULTILAM contact technology for consistently low contact resistance and long-term performance. With IP65/IP68 protection when mated, UV and salt mist resistance, and international certifications, it is an ideal solution for residential, commercial, and utility-scale photovoltaic installations.

Key Features

• Original Stäubli MC4-Evo2 branch socket
• Official product designation PV-AZB4-EVO 2-UR
• Y-branch connector for combining PV strings
• Plug-and-play installation with no crimping or torqueing required
• Compatible with original MC4 and MC4-Evo2 cable connectors
• Rated voltage up to 1500 V DC (IEC 62852 & UL 6703)
• Rated current 60 A (IEC) / 95 A (UL)
• Proven MULTILAM contact technology
• IP65/IP68 protection when mated
• UV and salt mist resistant
• TÜV Rheinland and cULus certified
• Compact design for professional photovoltaic installations

The Stäubli MC4-Evo2 Branch Socket PV-AZB4-EVO 2-UR provides a fast, secure, and durable solution for creating reliable branch connections in modern solar power systems.

More information about MC4-Evo2 Branch Socket PV-AZB4-EVO 2-UR:

• Datasheet
