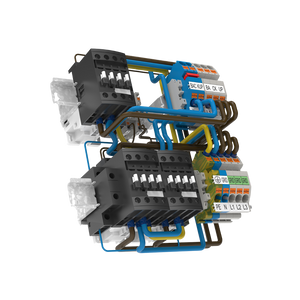

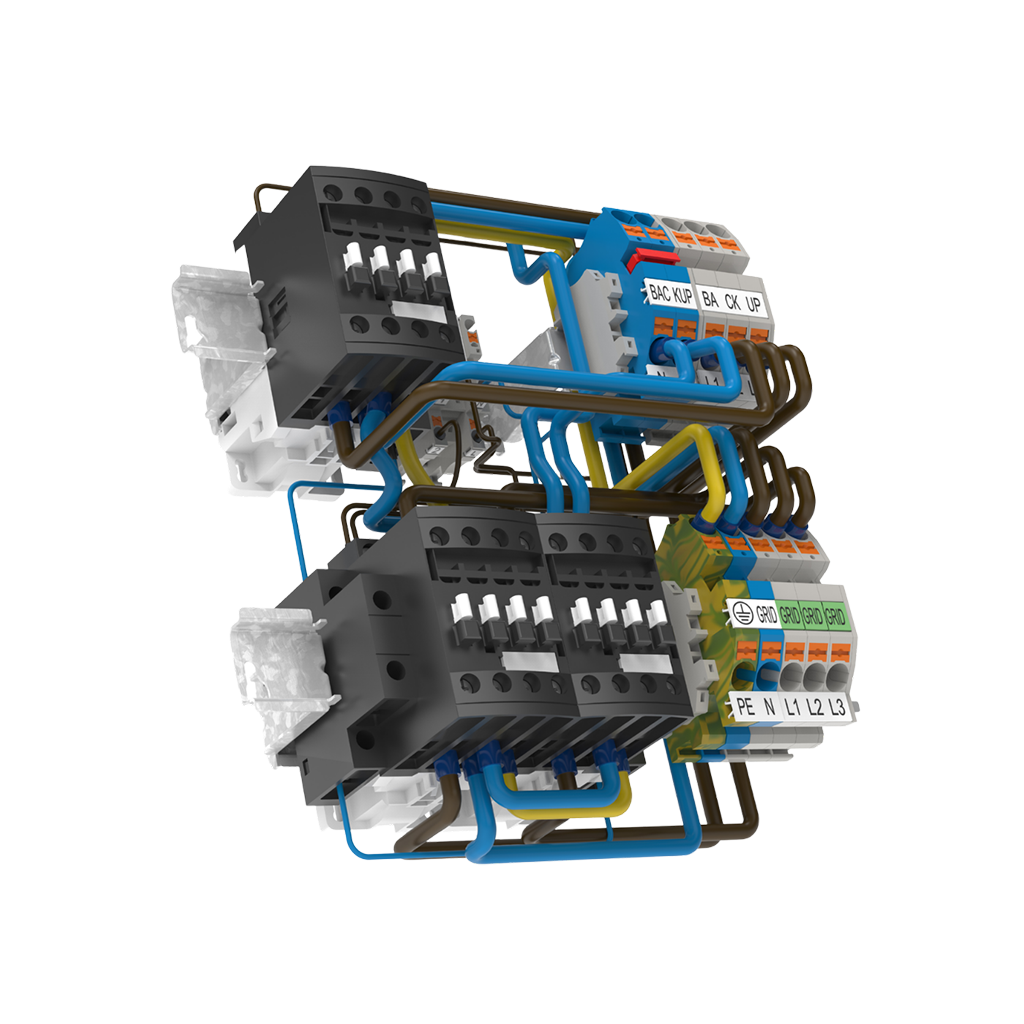

SMA Backup Kit 63A, 4-pole (BU-STPH-4P63K) for SMA Sunny Tripower Hybrid X solar inverters.
The SMA Backup Kit 63A, 4-pole (BU-STPH-4P63K) is a pre-configured automatic backup power solution for SMA Sunny Tripower Hybrid X inverters. Designed for residential and small commercial solar systems with battery storage, it provides reliable backup power by automatically switching between grid-connected and off-grid operation during power outages. With a 63 A continuous current rating, the system can supply the entire building without interruption.
When the utility grid fails, the Backup Kit safely isolates the installation from the grid and transfers all connected loads to the battery storage system. Once utility power is restored, the system automatically reconnects, ensuring seamless operation without manual intervention. Combined with an SMA Sunny Tripower Hybrid X inverter and compatible battery storage, it creates a dependable whole-building backup solution that increases energy security and self-sufficiency.
Reliable Backup Power
The 4-pole version is intended for installations that require four-pole grid disconnection according to local electrical regulations. It supports black start capability, enabling the inverter and battery system to restart even after prolonged grid failures. A configurable backup energy reserve also ensures that sufficient stored energy remains available for critical loads when backup power is needed.
Efficient and Easy to Install
The Backup Kit is supplied as a pre-configured DIN rail mounting kit, allowing fast and straightforward installation inside electrical distribution boards. It consumes no power during normal grid operation and only 4 W in backup mode, providing maximum efficiency while maintaining continuous system readiness. The solution also supports parallel operation of up to three Sunny Tripower Hybrid X inverters, making it suitable for larger residential and commercial hybrid systems.
Key Features
- Automatic switchover between grid and backup operation
- 4-pole grid disconnection
- Supplies the entire building up to 63 A continuous current
- Compatible with SMA Sunny Tripower Hybrid X inverters
- Black start capability
- Configurable backup energy reserve
- Supports parallel operation of up to 3 hybrid inverters
- Pre-configured DIN rail mounting kit
- No self-consumption during normal grid operation
- Only 4 W power consumption in backup mode
- Ideal for residential and small commercial battery storage systems
The SMA Backup Kit 63A, 4-pole (BU-STPH-4P63K) provides a reliable and energy-efficient backup power solution with automatic switching, seamless integration with Sunny Tripower Hybrid X, and dependable whole-building protection during grid outages.
More information about SMA Backup Kit 63A, 4-pole:
SMA Backup Kit 63A, 4-pole (BU-STPH-4P63K) for SMA Sunny Tripower Hybrid X solar inverters.
The SMA Backup Kit 63A, 4-pole (BU-STPH-4P63K) is a pre-configured automatic backup power solution for SMA Sunny Tripower Hybrid X inverters. Designed for residential and small commercial solar systems with battery storage, it provides reliable backup power by automatically switching between grid-connected and off-grid operation during power outages. With a 63 A continuous current rating, the system can supply the entire building without interruption.
When the utility grid fails, the Backup Kit safely isolates the installation from the grid and transfers all connected loads to the battery storage system. Once utility power is restored, the system automatically reconnects, ensuring seamless operation without manual intervention. Combined with an SMA Sunny Tripower Hybrid X inverter and compatible battery storage, it creates a dependable whole-building backup solution that increases energy security and self-sufficiency.
Reliable Backup Power
The 4-pole version is intended for installations that require four-pole grid disconnection according to local electrical regulations. It supports black start capability, enabling the inverter and battery system to restart even after prolonged grid failures. A configurable backup energy reserve also ensures that sufficient stored energy remains available for critical loads when backup power is needed.
Efficient and Easy to Install
The Backup Kit is supplied as a pre-configured DIN rail mounting kit, allowing fast and straightforward installation inside electrical distribution boards. It consumes no power during normal grid operation and only 4 W in backup mode, providing maximum efficiency while maintaining continuous system readiness. The solution also supports parallel operation of up to three Sunny Tripower Hybrid X inverters, making it suitable for larger residential and commercial hybrid systems.
Key Features
- Automatic switchover between grid and backup operation
- 4-pole grid disconnection
- Supplies the entire building up to 63 A continuous current
- Compatible with SMA Sunny Tripower Hybrid X inverters
- Black start capability
- Configurable backup energy reserve
- Supports parallel operation of up to 3 hybrid inverters
- Pre-configured DIN rail mounting kit
- No self-consumption during normal grid operation
- Only 4 W power consumption in backup mode
- Ideal for residential and small commercial battery storage systems
The SMA Backup Kit 63A, 4-pole (BU-STPH-4P63K) provides a reliable and energy-efficient backup power solution with automatic switching, seamless integration with Sunny Tripower Hybrid X, and dependable whole-building protection during grid outages.
More information about SMA Backup Kit 63A, 4-pole:
SMA Backup Kit 63A, 4-pole
- Regular price
- €698,00
- Sale price
- €698,00
- Regular price
-
SKU: BU-STPH-4P63K
